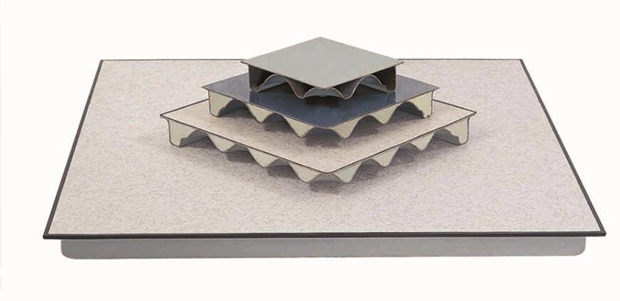

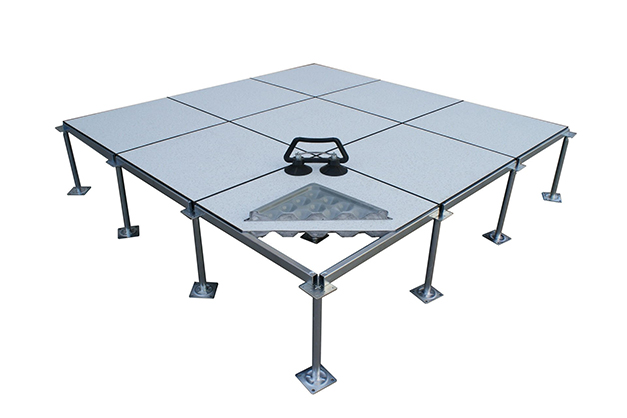

The steel access floor is made of high quality deep stretch coil steel sheet and SPCC steel sheet, which is punched, spot-welded and finally coated with epoxy powder. The panel is filled with foamed cement inside. After being kept for a period of time, it forms a stable support structure. The floor surface adhered with anti-static HPL or conductive PVC, four edges sealed with edge trims. The surface resistance below 1x109 Ω. Finish height of system can be from 100mm to 2000mm.
1. According to loading capacity, we have light, medium, heavy types, bearing 800lb, 1000lb, 1250lb, 1500lb respectively.
2. According to dimension, we have 600MM and 610MM panels, and could cut standard round or square wiring outlet.
3. According to electric resistance request, the floor surface use anti-static HPL to reach 106-109Ω, use Conductive PVC tile to reach 104-106Ω

Application:
Anti-static access floor is widely used in computer room, clean room, electrical control room, communication center, data center, program-controlled telephone exchange center etc.. And it is also installed in production workshop of integrated circuits, computer, telecommunications, electronics and optical equipment.

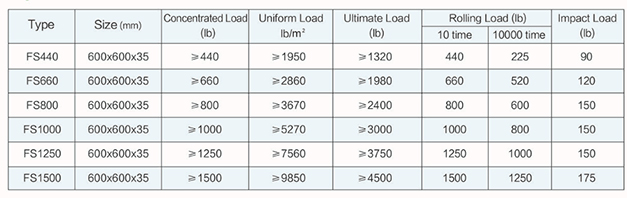

Type and Specification
